PC-3000 Flash

PC-3000 Flash

The PC-3000 Flash is a hardware-software system intended for recovering data from NAND based devices in such cases where there is no access through the authorized drive interface:


  • UFD (USB Flash Drive)
  • SD (Secure Digital Card)
  • CF (Compact Flash)
  • micro SD (micro Secure Digital Card)
  • MS (Memory Stick)
  • xD
  • Monolithic Flash Devices
  • MMC (Multi Media Card)
  • Voice Recorder (dictaphone)
  • iPhone 2G, 3G, 3GS (without hardware encryption)

Data recovery from USB drives, memory cards, mobile storage devices


The PC-3000 Flash is based on our own “know-how” technology of getting direct access to Flash memory microchips. The microchip is desoldered from the storage device and read by our special device – the “Flash reader” – providing access to data when the controller is damaged. This technology greatly increases the chances of successful data recovery even when the storage device is physically damaged.


The PC-3000 Flash contains an up-to-date large memory chip database that allows you to identify and read microchips in automatic mode. Complicated stack organizations which consist of several parts are automatically detected by the PC-3000 Flash as well.



NAND microchip technology is constantly changing: microchips are becoming more high-tech, new principles of functionality are created and new requirements and protocols for microchips appear, for example, TLC microchips. Because of this constant change, the Flash Reader software is continuously updated to provide support for new microchips in accordance with the strict requirements necessary for correct functionality.


The PC-3000 Flash is capable of automatically checking and downloading the latest libraries via the Internet:

  • Memory chip library
  • ECC algorithm library
  • XOR library
  • Library of Analysis algorithms, preparation and research methods
  • Page format library
  • Supply circuit library
  • Rereading Modes reference book
  • Dynamic XOR library


If there are any new resources, they are downloaded from the ACE Laboratory server and updated.


In addition to a great variety of manual and visual modes, the PC-3000 Flash has automatic data recovery methods which help solve both simple and difficult cases. For example, in most cases, Complex analysis allows for making all prior operations automatically and get access to user data.


With the PC-3000 Flash, you can recover data with “one-click” using the PC-3000 Flash Global Solution Centre. It is a dream come true for data recovery specialists!


The PC-3000 Flash Solution Center is updated daily!


The list of controllers supported by the “PC-3000 Flash Solution Center” can be reviewed here


THE PC-3000 Flash Kit

  • PC-3000 Flash Reader – 1 pc.
  • USB 2.0 Cable – 1 pc.
  • PC-3000 software (14×18) – 1pc.
  • User manual – 1 pc.
  • TSOP-48 Adapter – 1 pc.
  • LGA/TLGA-52/60 (14×18) adapter – 1 pc.
  • BGA-152 adapter – 1 pc.
  • Multiboard Adapter – 1 pc.
  • Monolith Module – 2 pc.
  • LGA-52/TSOP-48 Module – 1 pc.
  • BGA-152/VBGA-100 Module – 1 pc.

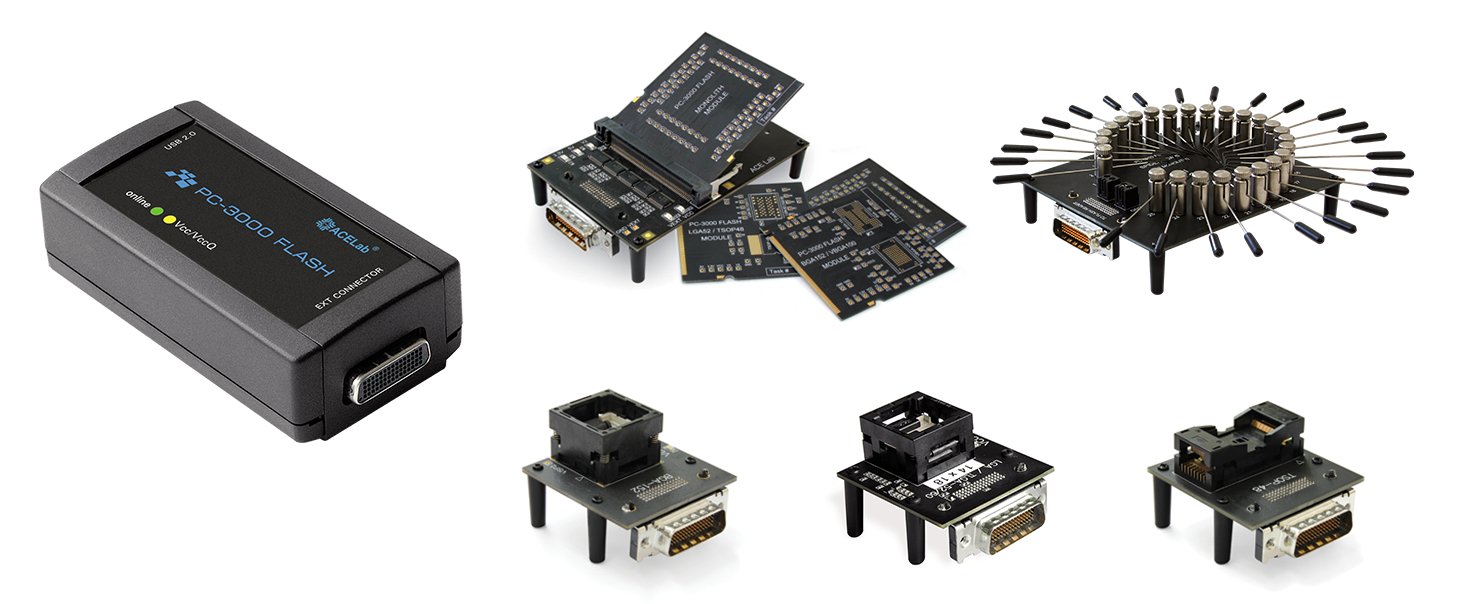

THE PC-3000 Flash All-in-One Package Includes

  • Spider Board adapter – 1 pc.
  • LGA/TLGA-52/60 (12×17) adapter – 1 pc.
  • TSSOP-56 adapter – 1pc.

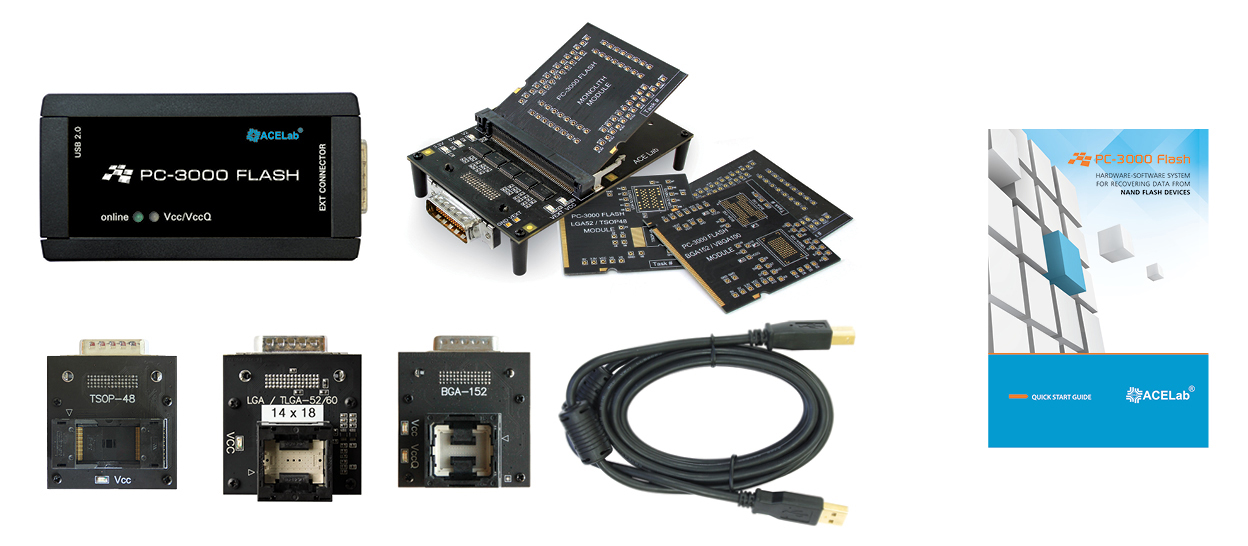

PC-3000 Flash Basic System
